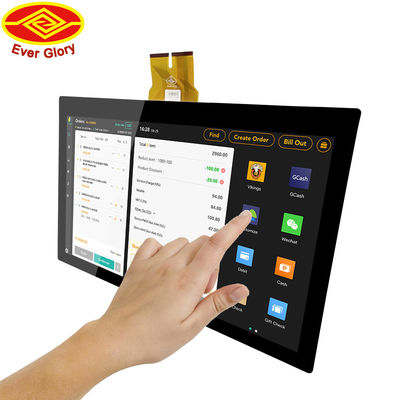

Anti Glare Touch Screen Display Panel 23.8 Inch For Maritime Navigation Sunlight Readable
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
| Model Number: | EG-23.8-A-1609V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 units |
|---|---|
| Price: | $65/units 2-499 units |
| Packaging Details: | Standard Packaging:Wooden box with foam |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Touch Panel P/N: | EG-23.8-A-1609V1 | Display Size: | 23.8 Inch |
|---|---|---|---|
| Contrast Ratio: | 1000Typ. | Resolution: | 1920(x3) X 1080 |
| Pixel Pitch: | 274.5 (per One Triad) ×274.5 Um | Support Color: | 16.7M |
| Interface: | USB, RS232, I2C | Operating System: | WindowsXP/7/8,10 Android,Linux,Mac |
| Luminance, White: | 400 Typ. Cd/m2 | Touch Points: | 10 Point Touch |
| Color: | Black | ||
| High Light: | Touch Screen LCD Panel 23.8 Inch,Touch Screen LCD Panel Sunlight Readable,Maritime sunlight readable lcd panel |
||
Product Description
23.8 Inch Touch Screen Display Panel A Wise Choice For Maritime Navigation Anti-Glare Treatment Sunlight Readable
| Touch Panel P/N | EG-23.8-A-1609V1 |
| Display P/N | G238HAN01.1 |
| Screen Diagonal | 23.8/16:9 |
| Cover Outline Dimension | 567.44*336.86 mm |
| Touch Panel View Area | 527.44*296.86 mm |
| Touch Panel Active Area | 528.44*297.86 mm |
| Display Outline Dimension | 543*317.4 mm |
| Display Active Area | 527.04*296.46 mm |
| Display Thickness | 15.05 mm |
| View angle | 89/89/89/89, Full view angle |
| Impact resistance | ≥IK07 |
| Luminance, white | 400cd/m2 |
| Operation Conditions | 10%-90%RH |
| Touch Response Time | ≤25 ms |
| Pixels H×V | 1920(x3) x 1080 |
| Pixel Pitch |
274.5 (per one triad) ×274.5 um |
| Shape:Standard/Customization | Material:Glass,Film | Optical Bonding |
| Color:Silkprinting,logo | FPC:Shape Design Optional | Air Bonding |
| Glass material:Glass,PMMA | IC:EETI/ILITEK | LCD:LED,OLED,TFT,IPS |
| Treatment:AR/AF/AG/Anti-UV | Interface:12C/USB/RS232 | |
| Thickness:1.1-12mm |
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
