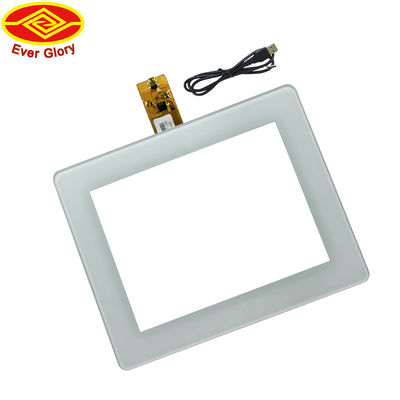

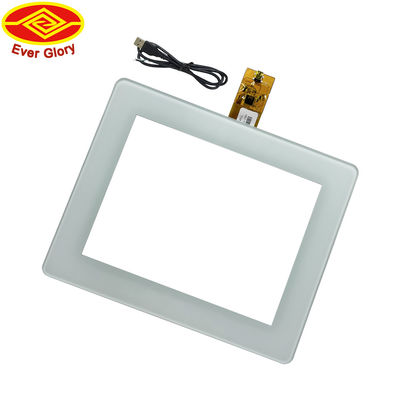

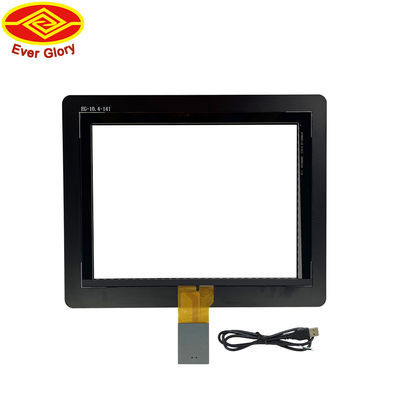

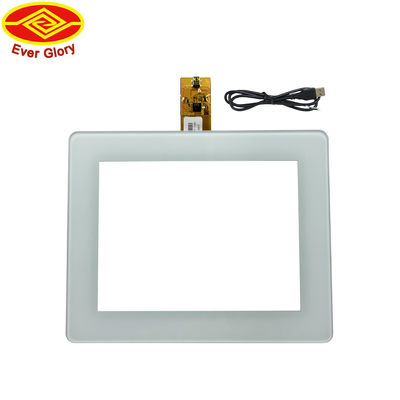

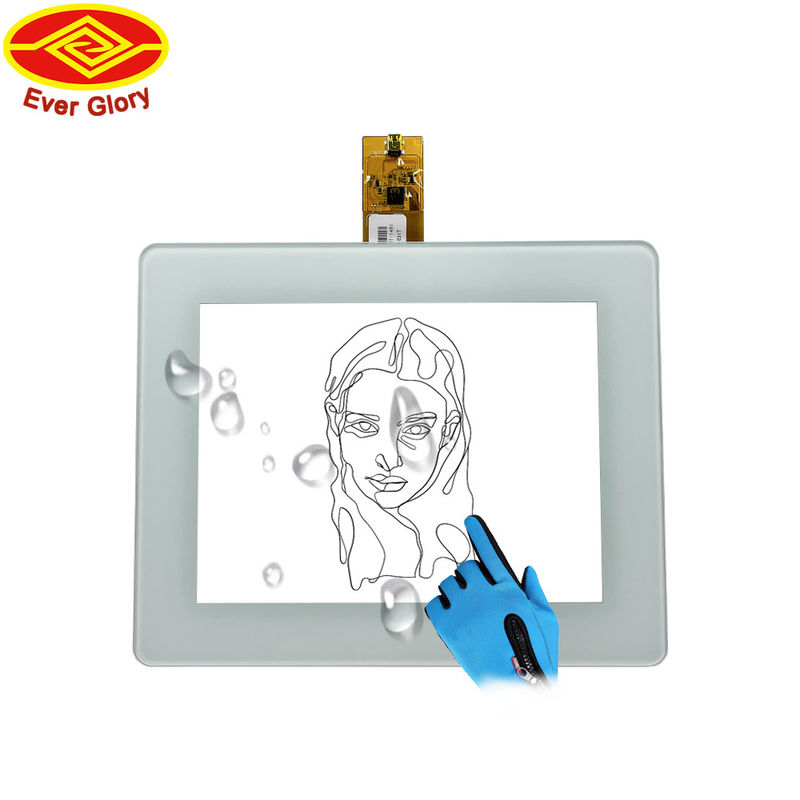

10.4" Industrial Touch Panel For Multi Kiosks Monitor Waterproof IP65
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $52.00/pieces 2-499 pieces |
| Packaging Details: | Standard packaging with carton or wooden box Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Display Size: | Customized Size | Products Status: | Stock |
|---|---|---|---|
| Color: | Black, Silver, White | Structure: | G+G |
| Ratio: | 4:3 | IC Controller: | EETI |
| Cover Lens Thickness: | 2.0mm±0.2mm | Transmittance: | >85% |
| Surface Hardness: | >6H | Application: | Industrial Application |
| High Light: | PCAP Industrial Touch Panel,27" Industrial Touch Panel,Kiosks industrial touchscreen panel |
||
Product Description
10.4" Industrial Touch Screen Panel For Multi Kiosks Monitor Waterproof IP65
| Size | 10.4 inch |
| Screen Diagonal | 5:4 |
| Structure | G+G |
| Touch controller | EETI / ILITEK |
| Surface hardness | >6H |
| Waterproof | IP65 |
| Outline Dimension | 190.20(W)*242.80(L)±0.2mm |
| Active Area | 160.20(W)*212.80(L)±0.2mm |
| Cover lens Thickness | 2.0mm±0.2mm |
| Total Thickness | 2.75±0.2mm |
| Tail Length | 123.4mm |
| Response Time | ＜25 ms |
| Touch point | 10 points |
| Chamfer | R3 mm |
| Interface Type | USB,RS232,I2C |
| Warranty | 3 years |
Lens's features |
Sensor features |
| Shape: Standard/Customization Color:Silkprinting,logo Glass material:Glass, PMMA Treatment:AR/AF/AG/Anti-UV Thickness:1.1-12mm |

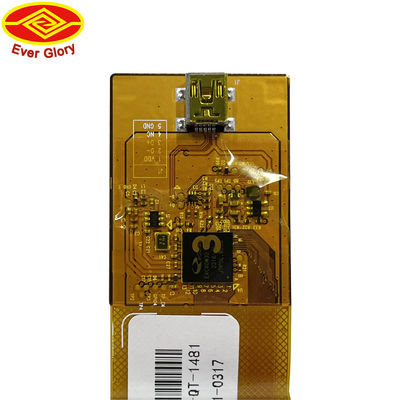

Material:Glass,film FPC:Shape design optional IC:EETI/ILITEK Interface:12C/USB/RS232 |
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
