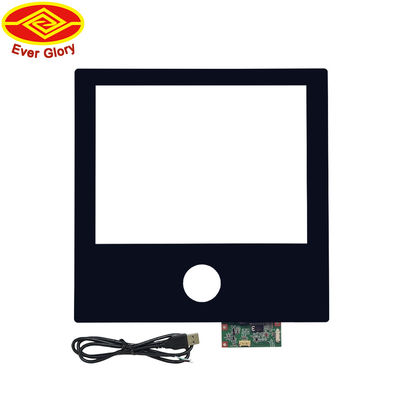

10.4 Inch Industrial Touc Screen Panel Completely Dustproof And Waterproof Suitable For Harsh Environments
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $49.00/pieces 2-499 pieces |
| Packaging Details: | Standard packaging with carton or wooden box;Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box. |
| Supply Ability: | 10000000 Unit/Units per Month |
|
Detail Information |
|||
| Type: | COB | Display Size: | Customized Size |
|---|---|---|---|
| Products Status: | Stock | Total Thickness: | 2.75±0.2mm |
| Touch Points: | Max 10 Touch Points | Structure: | Glass Plus Glass |
| Application: | ATM,Touch Monitor,Touch All In One,Panel Pcs,Railway,Medical | Solution: | EETI |
| Transparency: | >85% | Surface Hardness: | 6H |
| Operating System: | Window,Android,Mac,Linux And So On | Operational Voltage: | 5V |
| Port: | Guangzhou Port/ Shenzhen Port,China | ||
| High Light: | High Brightness Capacitive Panel Touch Screen,Ip65 Capacitive Panel Touch Screen,27" capacitive touch screen panel |
||
Product Description
10.4 Inch Industrial Touc Screen Panel Completely Dustproof And Waterproof Suitable For Harsh Environments
| Size | 10.4 inch |
| Screen Diagonal | 4:3 |
| Structure | G+G |
| Touch controller | EETI / ILITEK |
| Surface hardness | >6H |
| Waterproof | IP65 |
| View Area | 159.20(W)*211.80(L)±0.2mm |
| Active Area | 160.20(W)*212.80(L)±0.2mm |
| Sensor Thickness | 0.55±0.05mm |
| Total Thickness | 2.75±0.2mm |
| Response Time | ＜25 ms |
| Report Rate | ＞100 Hz |
| Supply Voltage | USB 5V |
| Chamfer | R3 mm |
| Interface Type | USB,RS232,I2C |
| Warranty | 3 years |
Lens's features |
Sensor features |
| Shape: Standard/Customization Color:Silkprinting,logo Glass material:Glass, PMMA Treatment:AR/AF/AG/Anti-UV Thickness:1.1-12mm |
Material:Glass,film FPC:Shape design optional IC:EETI/ILITEK Interface:12C/USB/RS232 |
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
Want to Know more details about this product
