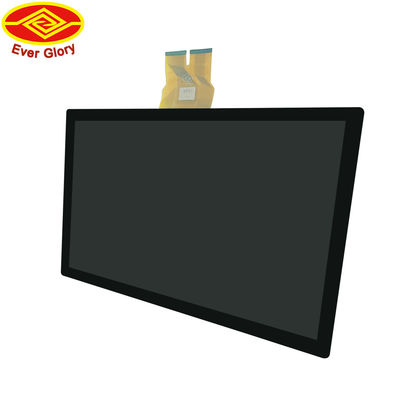

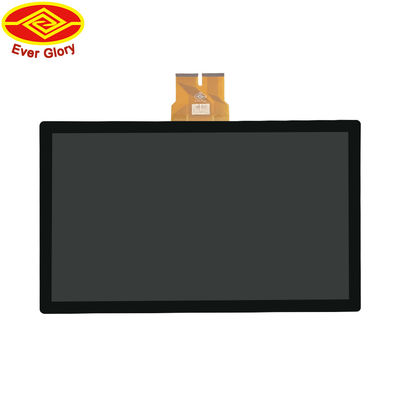

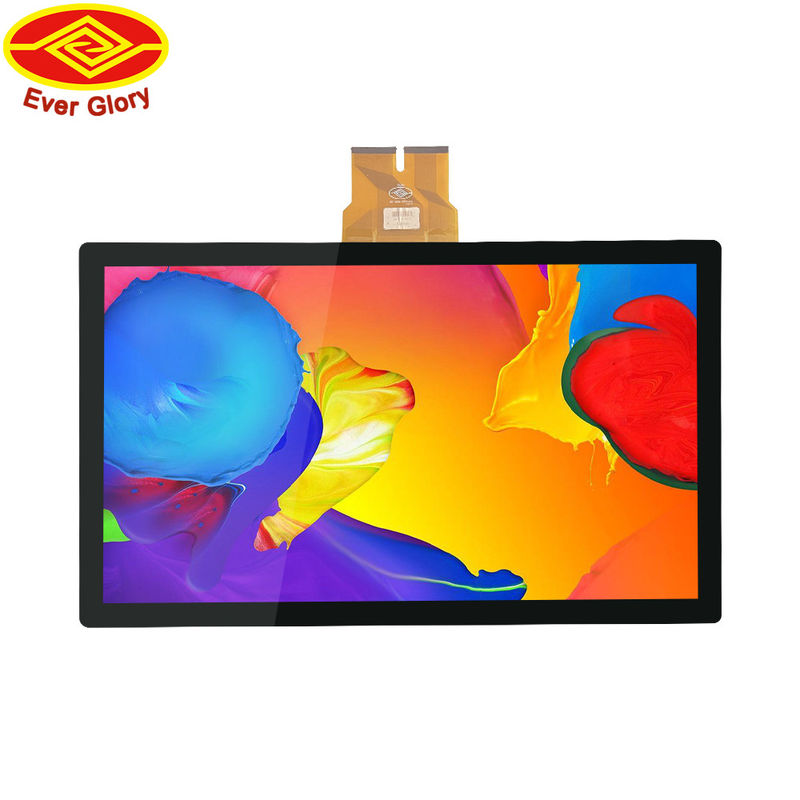

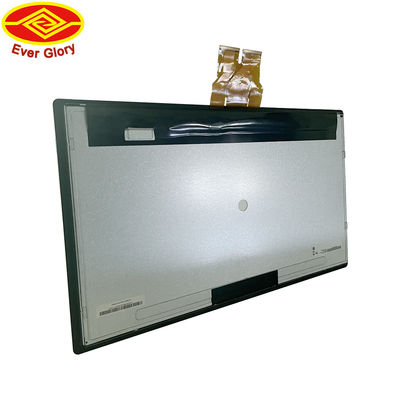

23.8 Inch Optical Bonding Display Lcd Module Multi Touch Pcap
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | EG |
Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
Model Number: | EG-23.8-A-1609V1-KTCTP-A |
Payment & Shipping Terms:
Minimum Order Quantity: | 2 pieces |
---|---|
Price: | $59/units 2-499 units |
Packaging Details: | Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box. |
Delivery Time: | 3-7 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100000pcs/month |
Detail Information |
|||
Size: | 23.8/16:9 Inch | Display Outline Dimension: | 543*317.4 Mm |
---|---|---|---|
Display Active Area: | 527.04*296.46 Mm | Impact Resistance: | ≥IK07 |
Pixels H×V: | 1920(x3) X 1080 Pixel | Color: | Black,Silver |
Transmittance: | >85% | ||
High Light: | 23.8 inch optical bonding display,multi touch pcap optical bonding display |
Product Description
Custom 23.8 Inch LCD Module Multi-touch Pcap USB EETI Optical Bonding COB Waterproof Touch Screen LCD Module
Size | 23.8 inch |
Display P/N | G238HAN01.1 |
nterface | HDMI/VGA/DC/PACUDIO |
Brightness (standard value) |
600cd/m2 |
Transmittance | >85% |
Color | 16.2M/262K |
Cover Outline Dimension | 567.44*336.86 mm |
Touch Panel View Area | 527.44*296.86 mm |
Touch Panel Active Area | 528.44*297.86 mm |
Display Outline Dimension |
543*317.4 mm |
Touch Response Time |
≤25 ms |
Pixels H×V | 1920(x3) x 1080 pixel |
Contrast Ratio | 1000 Typ. |
Shape:Standard/Customization | Material:Glass,Film | Optical Bonding |
Color:Silkprinting,logo | FPC:Shape Design Optional | Air Bonding |
Glass material:Glass,PMMA | IC:EETI/ILITEK | LCD:LED,OLED,TFT,IPS |
Treatment:AR/AF/AG/Anti-UV | Interface:12C/USB/RS232 | |
Thickness:1.1-12mm |
Standard Packing with carton or wooden box
- Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
- Flexible packing options with carton or wooden box.
- Shipping methods:DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
