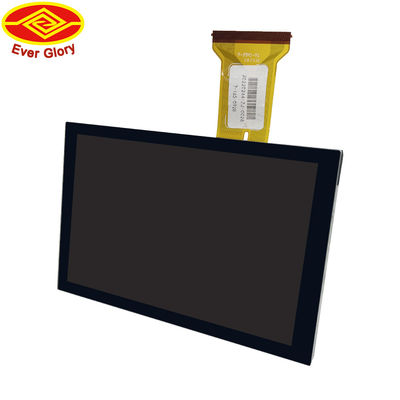

7 Inch Industrial Touch Monitor Pcap Transparent Tft Lcd Eeti Capacitive Ctp Multi
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
| Model Number: | EG-7-A-1509V1-KTCTP-IL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $34/units 2-499 units |
| Packaging Details: | Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box. |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000pcs/month |
|
Detail Information |
|||
| Screen Diagonal: | 7/15:9 Inch | Cover Surface Hardness: | ≥6 H |
|---|---|---|---|
| Lamination To Display: | Air Bonding(gap 1mm) | Support Touch Points: | 10 Points Typ. |
| Controller Supply Voltage: | USB 5V Typ. | Touch Response Time: | ≤25 Ms |
| Transmittance: | >85% | ||
| High Light: | 7 inch industrial touch monitor,pcap industrial touch monitor,pcap ip65 touch screen monitor |
||
Product Description
Touch Display Panel Industrial 7 inch PCAP Transparent TFT LCD EETI Capacitive CTP Multi
| Size | 7 inch |
| Display P/N | G070ACE-L01_Ver2.0 |
| Touch controller | EETI / ILITEK |
| Surface hardness | >6H |
| Outline Dimension | 172.4*111.44 mm |
| View Area | 152.4*91.44 mm |
| Active Area | 153.4*92.44 mm |
| Pixels H×V | 800(RGB) x 480mm |
| Pixel Pitch | 0.1905 (H) x 0.1905 (V) mm |
| Contrast Ratio | 800 Typ. |
| Luminance, white | 500 Typ. |
| Shape:Standard/Customization | Material:Glass,Film | Optical Bonding |
| Color:Silkprinting,logo | FPC:Shape Design Optional | Air Bonding |
| Glass material:Glass,PMMA | IC:EETI/ILITEK | LCD:LED,OLED,TFT,IPS |
| Treatment:AR/AF/AG/Anti-UV | Interface:12C/USB/RS232 | |
| Thickness:1.1-12mm |
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
