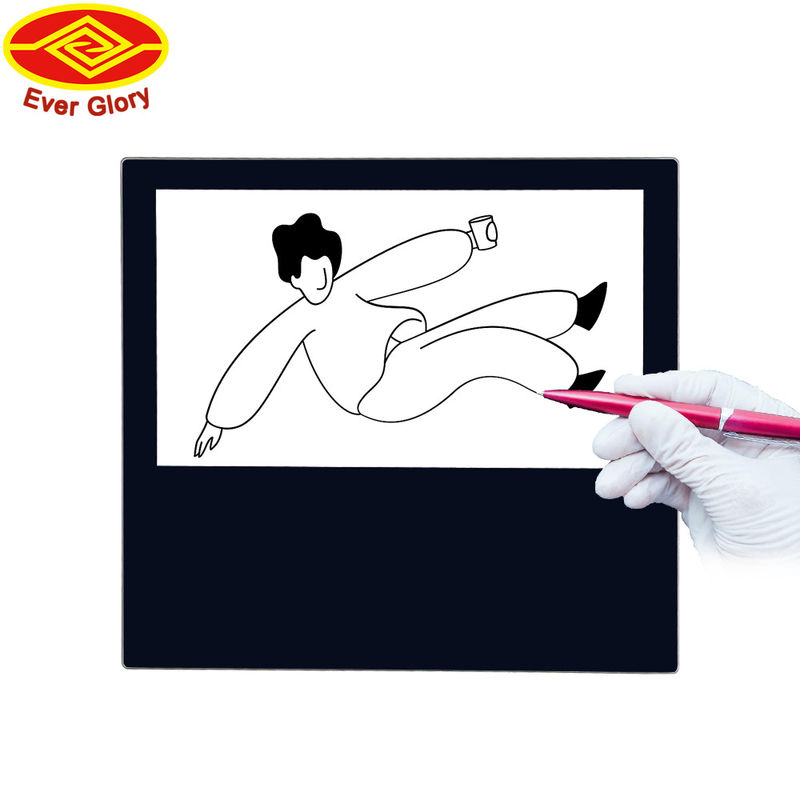

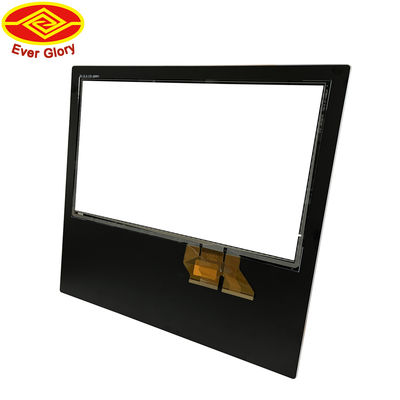

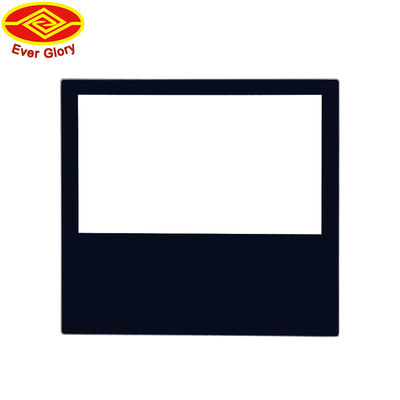

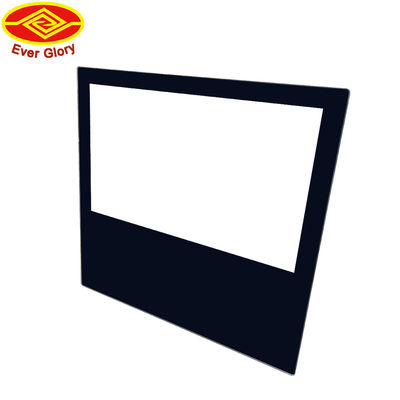

10 Points Cob Touch Screen Bonding 15.6 Inch

10 Points Cob Touch Screen Bonding 15.6 Inch

Product Details:

Place of Origin: Guangdong, China
Brand Name: EG
Certification: CE/FCC/ROHS/ISO9001/ISO14001
Model Number: EG-15.6-A-1609V1

Payment & Shipping Terms:

Minimum Order Quantity: 2 sets
Price: $28.00/sets 2-499 sets
Packaging Details: Inner packaging: packing with bubble bags and filling with foam plastic materials; <br>Outer packaging: packing with serial size of carton or wooden box.<br><br>24'' Capacitive multi touch panel with USB port support multi points
Supply Ability: 10000 Piece/Pieces per Week
Get Best Price Contact Now

Detail Information

Type: COB Display Size: 15.6 [16:9]
Aspect Ratio: 16:9 Touch Points: 10 Points
Printing: Black Port: Guangzhou Port/ Shenzhen Port,China
High Light:

cob touch screen bonding

,

15.6 inch touch screen bonding

,

10 points optical bonding touch screen

Product Description

15.6 Inch Custom Capacitive Industrial Touch Panel Waterproof IP65

10 Points Cob Touch Screen Bonding 15.6 Inch 0


Size 15.6 inch
Structure G+G
Touch controller EETI / ILITEK
Surface hardness >6H
Waterproof IP65
Outline Dimension Custom
View Area 193.99(W)*344.56(L)±0.3 mm
Active Area 194.99(W)*345.56(L)±0.3 mm
Sensor glass Thickness 0.7±0.05 mm
Cover lens Thickness 2.0±0.2 mm
Total Thickness 2.9±0.2 mm
Chamfer R5 mm
Sensor Proces Print Process(ITO Pattern) + laser line(Ag)
Transmittance >85%
Touch point 10 points
Relative Humidity 95% at 60℃, RH Non-condensing
Interface Type USB,RS232,I2C
Warranty 3 years


10 Points Cob Touch Screen Bonding 15.6 Inch 1
10 Points Cob Touch Screen Bonding 15.6 Inch 2
10 Points Cob Touch Screen Bonding 15.6 Inch 3
10 Points Cob Touch Screen Bonding 15.6 Inch 4


Lens's features

Sensor features

Shape: Standard/Customization
Color:Silkprinting,logo

Glass material:Glass, PMMA

Treatment:AR/AF/AG/Anti-UV

Thickness:1.1-12mm
Material:Glass,film

FPC:Shape design optional

IC:EETI/ILITEK

Interface:12C/USB/RS232


10 Points Cob Touch Screen Bonding 15.6 Inch 5

10 Points Cob Touch Screen Bonding 15.6 Inch 6
10 Points Cob Touch Screen Bonding 15.6 Inch 7
10 Points Cob Touch Screen Bonding 15.6 Inch 8
10 Points Cob Touch Screen Bonding 15.6 Inch 9
10 Points Cob Touch Screen Bonding 15.6 Inch 10

  • How can we guarantee quality?

    All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.

  • Which operating systems does is support?

    Our products support Windows,Android,Mac,Linux and Chrome.

  • What are the advantages of our products?

    High precision,response quickly,good quality control,excellent after-service.

  • What is included in your products?

    Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)

  • Do you support sample testing?

    Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
