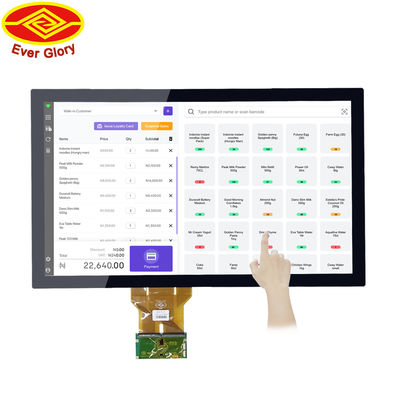

27 Inch PCAP Capacitive Touch Panel With RS232 Interface IP65 Waterproof
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 units |
|---|---|
| Price: | $16-18/units 2-499 units |
| Packaging Details: | Standard packaging with carton or wooden box;Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box. |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000pcs/month |
|
Detail Information |
|||
| Type: | PCAP | Size: | 21.5 Inch |
|---|---|---|---|
| Supplier Type: | Industrial/Tansportation/Outdoor/Voyage/Energy/gaming/Military | Products Status: | Stock |
| Structures: | G+G | AA: | 600.88±0.3mm*339.31±0.3mm |
| Total Thickness: | 3.3±0.3mm | Transmittance: | >85% |
| Surface Hardness: | >6H | Impact Resisrance: | ≥IK07 |
| Waterproof: | IP65 | Interface: | USB |
| OCA Thickness: | 0.2mm | Warranty: | 3 Years |
| High Light: | 27 Inch Capacitive Touch Panel,RS232 Capacitive Touch Panel,IP65 pcap touch panel |
||
Product Description
27 Inch PCAP Touch Panel Suitable For Transportation And Outdoor Environments With RS232 Interface And IP65 Waterproof
| Size | 27 inch |
| Structure | G+G |
| Touch controller | EETI / ILITEK |
| Surface hardness | >6H |
| Waterproof | IP65 |
| Sensor glass Thickness | 1.1mm |
| Cover lens Thickness | 3.0mm |
| Input Voltage | 3.5V∽5.5V,Typical 5V |
| Sensor Proces | Print Process(ITO Pattern) + laser line(Ag) |
| Operating Temperature | -20℃~+60℃ |
| AA(WxH) | 700.4±0.3mm*394.9±0.3mm |
| Transmittance | >85% |
| Touch point | 10 points |
| Relative Humidity | 95% at 60℃, RH Non-condensing |
| Interface Type | USB,RS232,I2C |
Lens's features |
Sensor features |
|
Shape: Standard/Customization
Glass material:Glass, PMMA
Treatment:AR/AF/AG/Anti-UV
Thickness:1.1-12mm |
Material:Glass,film
FPC:Shape design optional
IC:EETI/ILITEK
Interface:12C/USB/RS232 |
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
