Industrial 7 Inch Multi Touch Capacitive Touchscreen With EETI ILITEK Controller
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 sets |
|---|---|
| Price: | $47.80/sets 2-49 sets |
| Packaging Details: | Inner packaging: packing with bubble bags and filling with foam plastic materials; <br>Outer packaging: packing with serial size of carton or wooden box.<br><br>15 inch capacitive touch glass screen with EETI controller |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | TFT | Display Size: | Customized Size |
|---|---|---|---|
| Products Status: | Stock | Product Name: | Industrial 7 Inch Capacitive Multi Touch Screen |
| Size: | 7 Inch | Aspect Ratio: | 16:9 |
| OD(CG/mm): | 111.60(W)*179.07(L)±0.2 | Shipping Ways: | DHL |
| AA(SG/mm: | 86.92(W)*155.08(L)±0.2 | Tail Length: | 60.05mm |
| Power Requirement: | DC 12V | Points: | 2-10 Touch Points |
| Port: | Guangzhou Port/ Shenzhen Port, China | ||
| High Light: | 7 Inch Multi Touch Capacitive Touchscreen,Industrial Multi Touch Capacitive Touchscreen,EETI 7 inch capacitive touch screen |
||
Product Description

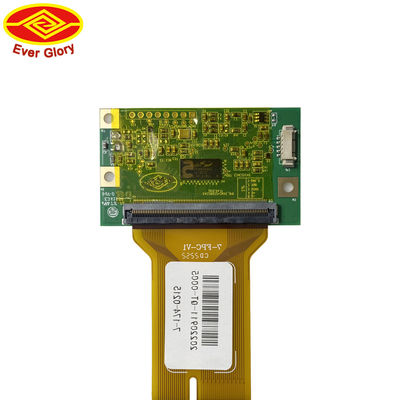

Industrial 7 inch Capacitive Multi Touch Screen with EETI ILITEK controller for POS Kiosk Machine
| Size | 7 inch |
| Screen Diagonal | 16:9 |
| Structure | G+G |
| Touch controller | EETI / ILITEK |
| Surface hardness | >6H |
| Waterproof | IP65 |
| Outline Dimension | 111.60(W)*179.07(L)±0.2 mm |
| View Area | 85.92(W)*154.08(L)±0.2mm |
| Active Area | 86.92(W)*155.08(L)±0.2 mm |
| Sensor Thickness | 0.55±0.05mm |
| Cover Thickness | 2.0±0.2mm |
| Total Thickness | 2.75±0.2mm |
| Power Consumption | ＜0.55 W |
| Life Time | Knock Test ＞50,000,000 times |
| Operation Conditions | -40℃~+85℃ 20%~90%RH |
| Report Rate | ＞100 Hz |
| Chamfer | R3 mm |
| Printing | Black |
| Interface Type | USB,RS232,I2C |
| Warranty | 3 years |
Lens's features |
Sensor features |
| Shape: Standard/Customization Color:Silkprinting,logo Glass material:Glass, PMMA Treatment:AR/AF/AG/Anti-UV Thickness:1.1-12mm |
Material:Glass,film FPC:Shape design optional IC:EETI/ILITEK Interface:12C/USB/RS232 |
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
