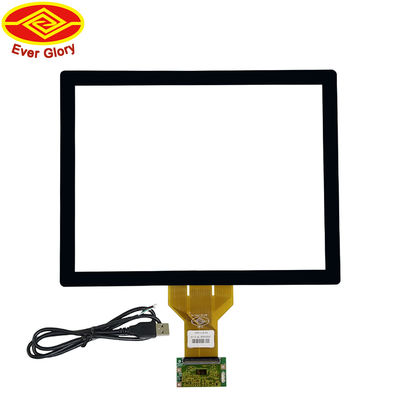

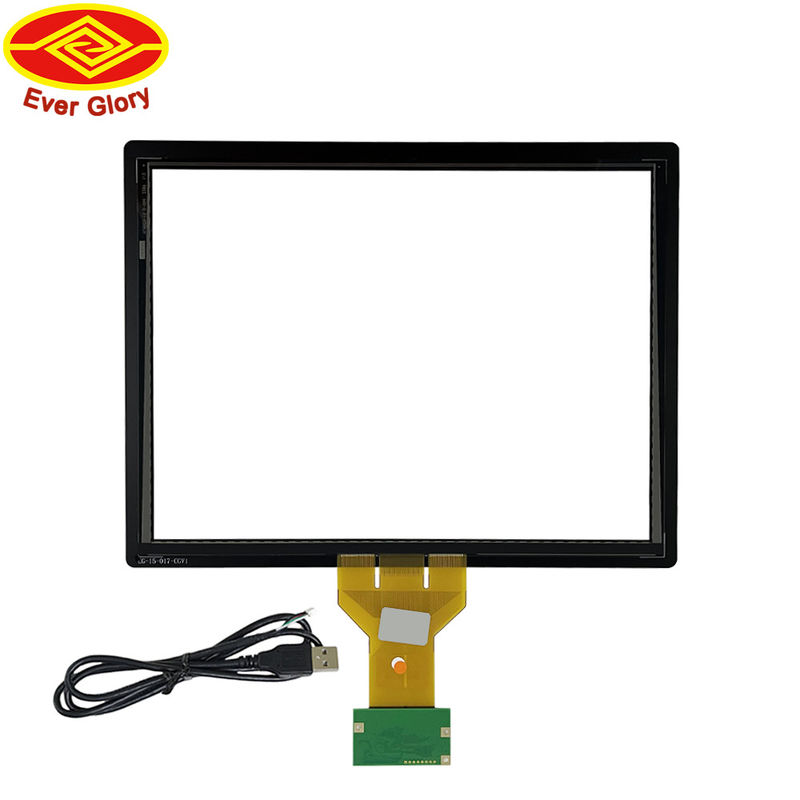

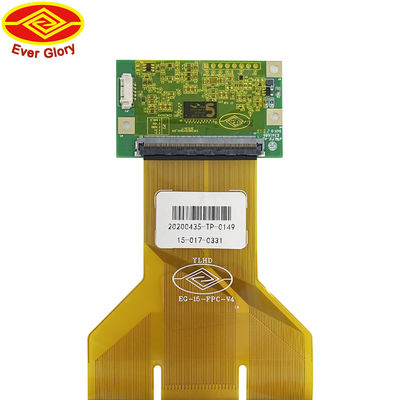

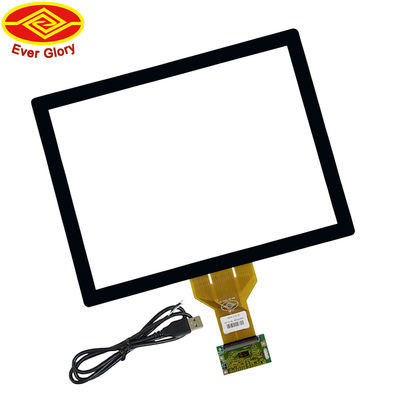

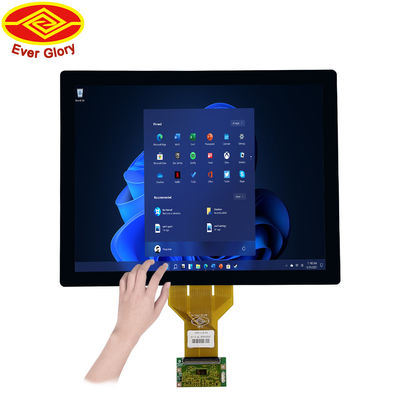

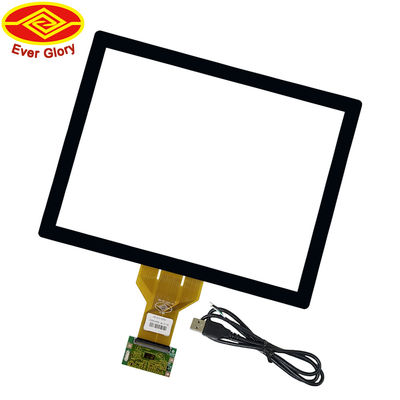

Custom LCD EETI Capacitive Touch Panel , 15 Inch Capacitive Touch Screen For Gaming
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 sets |
|---|---|
| Price: | $49.00/sets 2-499 sets |
| Packaging Details: | Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box. |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | COB | Display Size: | Customized Size |
|---|---|---|---|
| Product Name: | Custom LCD EETI 15 Inch Capacitive Touch Panel | Products Status: | Stock |
| Size: | 15 Inch | Interface: | USB/RS232/VGA/DVI |
| Application: | Industrial | Touch Points: | Multi Point Touch |
| Operating System: | Win7/Win8/Android/Linux | Touch Screen: | Capacitive |
| Aspect Ratio: | 5:4 | Certifications: | CE/FCC/ROHS |
| Port: | Guangzhou Port, Shenzhen Port, China | ||
| High Light: | EETI Capacitive Touch Panel,Gaming Capacitive Touch Panel,LCD 15 Inch Capacitive Touch Screen |
||
Product Description
Custom LCD EETI 15 Inch Capacitive Touch Panel Overlay Kit For Gaming Medical
| Size | 15 inch |
| Screen Diagonal | 5:4 |
| Structure | G+G |
| Touch controller | EETI / ILITEK |
| Surface hardness | >6H |
| Waterproof | IP65 |
| Outline Dimension | 260.60(W)*336.30(L)±0.2mm |
| View Area | 228.60(W)*304.30(L)±0.2mm |
| Active Area | 229.60(W)*305.30(L)±0.2mm |
| Sensor Thickness | 0.55±0.05mm |
| Cover Thickness | 2.0±0.2mm |
| Total Thickness | 2.75±0.2mm |
| Power Consumption | ＜0.55 W |
| Life Time | Knock Test ＞50,000,000 times |
| Operation Conditions | -40℃~+85℃ 20%~90%RH |
| Report Rate | ＞100 Hz |
| Chamfer | R3 mm |
| Printing | Black |
| Interface Type | USB,RS232,I2C |
| Warranty | 3 years |
Lens's features |
Sensor features |
| Shape: Standard/Customization Color:Silkprinting,logo Glass material:Glass, PMMA Treatment:AR/AF/AG/Anti-UV Thickness:1.1-12mm |
Material:Glass,film FPC:Shape design optional IC:EETI/ILITEK Interface:12C/USB/RS232 |
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
