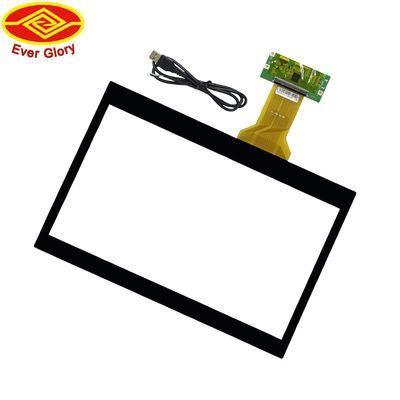

14 Inch Outdoor PACP Touch Panel Equipped With USB Interface And IP65 Waterproof Rating
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $34.00/pieces 2-499 pieces |
| Packaging Details: | Inner packaging: packing with bubble bags and filling with foam plastic materials; <br>Outer packaging: packing with serial size of carton or wooden box. |
| Supply Ability: | 1000000 Piece/Pieces per Week |
|
Detail Information |
|||
| Type: | TFT | Display Size: | Customized Size |
|---|---|---|---|
| Product Name: | 14 Inch PCAP Touch Panel | Products Status: | Stock |
| Size: | 14 Inch | Interface: | USB |
| Application: | Industrial | Touch Points: | 10 Points |
| Operating System: | Win7/Win8/Android/Linux | Touch Screen: | Capacitive |
| Feature: | Anti-glare | Port: | Shenzhen,shanghai,China |
| High Light: | Projected Capacitive Touch Screen Anti Glare,Projected Capacitive Touch Screen 10 Points,USB projected capacitive touchscreen |
||
Product Description
14 Inch Outdoor PACP Touch Panel Equipped With USB Interface And IP65 Waterproof Rating
| Size | 14 inch |
| Structure | G+G / P+G / G+F / G+FF |
| Touch controller | EETI / ILITEK |
| Surface hardness | >6H |
| Cover lens Thickness | 2.0mm |
| Sensor glass Thickness | 0.7mm |
| Input Voltage | 3.5V∽5.5V,Typical 5V |
| Sensor Proces | Print Process(ITO Pattern) + laser line(Ag) |
| Operating Temperature | -20℃~+60℃ |
| AA(WxH) | 477.64±0.3mm*269.11±0.3mm |
| Transmittance | >85% |
| Type | Capacitive |
| Customized Function | Logo, Waterproof, Gloves Touch, AG/AR/AF |
| Interface Type | USB,RS232,I2C |
Lens's features |
Sensor features |
|
Shape: Standard/Customization
Glass material:Glass, PMMA
Treatment:AR/AF/AG/Anti-UV
Thickness:1.1-12mm |
Material:Glass,film
FPC:Shape design optional
IC:EETI/ILITEK
Interface:12C/USB/RS232 |
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
Want to Know more details about this product
