Military Grade 15 Inch Touch Screen , Touch Panel Display USB 12C RS232 Interface
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
| Model Number: | EG-15-A-0403V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 units |
|---|---|
| Price: | $160.00/units 2-499 units |
| Packaging Details: | Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box. |
| Supply Ability: | 10000 Unit/Units per Month |
|
Detail Information |
|||
| Touch Panel P/N: | EG-15-A-0403V1 | Display Size: | Customized Size |
|---|---|---|---|
| Screen Diagonal: | 15/4:3 Inch | Product Name: | 15 Inch Touch Display Panel |
| Products Status: | Stock | Interface Type: | USB 12C RS232 |
| Application: | Military Requirements | Feature: | LCD |
| Aspect Ratio: | 16:9 | Luminance,white: | 500 Typ.Cd/m2 |
| Backlight: | Led Backlight | Display Surface Treatment: | Hard Coating (3H) Anti-Glare |
| Port: | Guangzhou Port, Shenzhen Port, Hongkong Port | ||
| High Light: | Military Grade 15 Inch Touch Screen,USB 15 Inch Touch Screen,12C Touch Panel Display |
||
Product Description

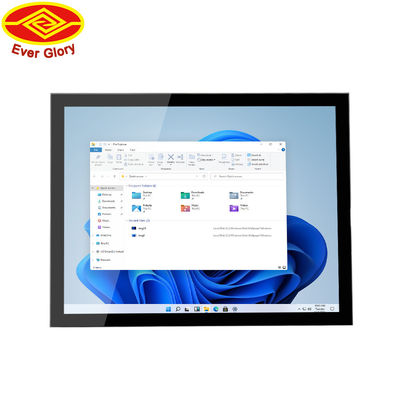

15 Inch Touch Display Panel With Military-Grade Quality Highly Reliable Touch Display Solution That Meets Military Requirements
| Touch Panel P/N | EG-15-A-0403V1 |
| Display P/N | G150XNE-L01 |
| Screen Diagonal | 15/4:3 inch |
| Cover Outline Dimension | 336.3*260.6mm |
| Touch Panel View Area | 304.3*228.6mm |
| Touch Panel Active Area | 305.3*229.6mm |
| Touch Panel Thickness | 2.75mm |
| Display Outline Dimension | 326.5*253.5mm |
| Display Active Area | 304.1*228.1mm |
| Display Thickness | 9.1mm |
| Total Thickness | 12.85mm |
| Impact resistance | ≥IK07 |
| Luminance, white | 500 Typ.Cd/m2 |
| Operation Conditions | 20%~90% RH |
| Shape:Standard/Customization | Material:Glass,Film | Optical Bonding |
| Color:Silkprinting,logo | FPC:Shape Design Optional | Air Bonding |
| Glass material:Glass,PMMA | IC:EETI/ILITEK | LCD:LED,OLED,TFT,IPS |
| Treatment:AR/AF/AG/Anti-UV | Interface:12C/USB/RS232 | |
| Thickness:1.1-12mm |
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
