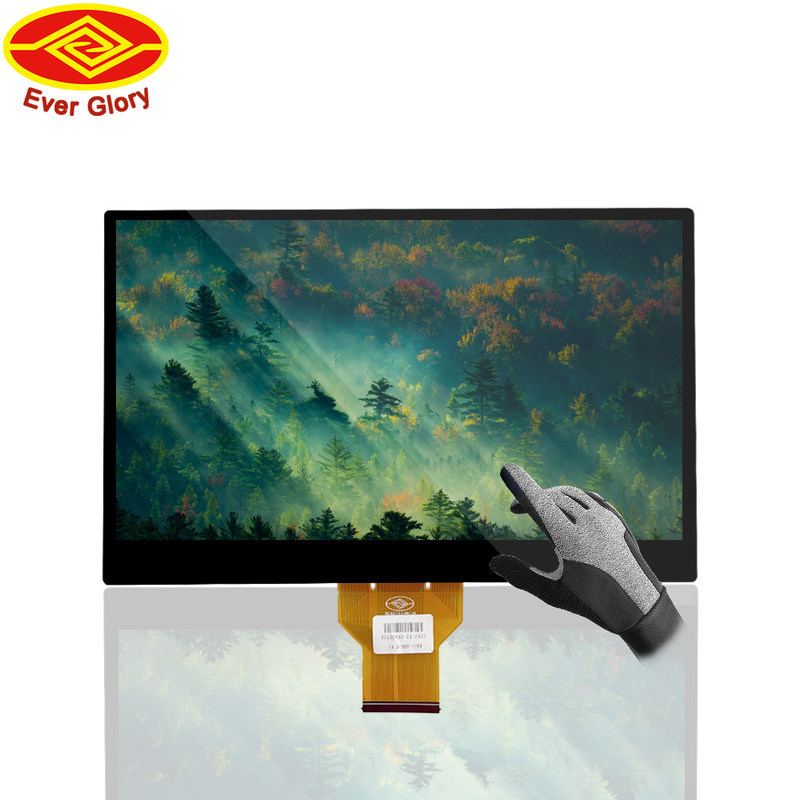

Waterproof Dustproof Optical Bonding Display 10.1" For Pos Terminal Kiosk Vending
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
| Model Number: | EG-10.1-A-1610V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 units |
|---|---|
| Price: | $108.00/units 2-499 units |
| Packaging Details: | Standard Packaging:Wooden box with foam |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Touch Panel P/N: | EG-10.1-A-1610V | Display Size: | 10.1 Inch |
|---|---|---|---|
| Contrast Ratio: | 800 Typ. | Resolution: | 1280(RGB) X 800 Pixel |
| Pixel Pitch: | 0.1695x0.1695 Mm | Support Color: | 262K/16.7M Color |
| Interface: | USB, RS232, I2C | Application: | POS Terminal,Industrial Application |
| Operating System: | WindowsXP/7/8,Android,Linux,Mac | Luminance, White: | 500 Typ. Cd/m2 |
| Touch Points: | 1-10 Point Touch | Color: | Black,White,Transparent,colors Optional |
| Shipping Ways: | UPS.FEDEX.DHL | Port: | Guangzhou Port/ Shenzhen Port,China |
| High Light: | Dustproof Optical Bonding Display,Optical Bonding Display 10.1" |
||
Product Description
10.1 Optical Bonding Display For Pos Terminal Kiosk Vending Waterproof & Dustproof IP65
| Touch Panel P/N | EG-10.1-A-1610V1 |
| Display P/N | TM101JDHG30_V2.0 |
| Screen Diagonal | 10.1/16:10 |
| Cover Outline Dimension | 246.96*165.6 mm |
| Touch Panel View Area | 216.96*135.6 mm |
| Touch Panel Active Area | 217.96*136.6 mm |
| Display Outline Dimension | 213.22*150.6 mm |
| Display Active Area | 216.96*135.6 mm |
| Display Thickness | 4.4 mm |
| View angle | 89/89/89/89, Full view angle |
| Impact resistance | ≥IK07 |
| Luminance, white | 500cd/m2&700cd/m2 |
| Operation Conditions | 10%-90%RH |
| Touch Response Time | ≤25 ms |
| Pixels H×V | 1920(RGB)x1080 , Full HD |
| Pixel Pitch | 0.1695x0.1695 mm |
| Shape:Standard/Customization | Material:Glass,Film | Optical Bonding |
| Color:Silkprinting,logo | FPC:Shape Design Optional | Air Bonding |
| Glass material:Glass,PMMA | IC:EETI/ILITEK | LCD:LED,OLED,TFT,IPS |
| Treatment:AR/AF/AG/Anti-UV | Interface:12C/USB/RS232 | |
| Thickness:1.1-12mm |
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
