12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation

12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation

Product Details:

Place of Origin: Guangdong, China
Brand Name: EG
Certification: CE/FCC/ROHS/ISO9001/ISO14001

Payment & Shipping Terms:

Minimum Order Quantity: 2 pieces
Price: $55.00/pieces 2-499 pieces
Packaging Details: Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box.
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Type: Capacitive Display Size: 12.1 Inch
Supplier Type: Transportation/Business Product Name: 12.1 Inch Industrial Touch Screen Panel
Products Status: Stock Touch Points: 10
Interface Supported: USB ,I2C,RS232 Feature: High Brightness
Backlight: Led Backlight Operation System: Andriod
Port: Guangzhou Port/ Shenzhen Port, China
High Light:

10.1 Inch Industrial Touch Panel

,

14 Inch Industrial Touch Panel

,

LCD 10.1 inch touch panel

Product Description

12.1 Inch Industrial Touch Screen Panel LCD With USB I2C RS232 Interface For Transportation

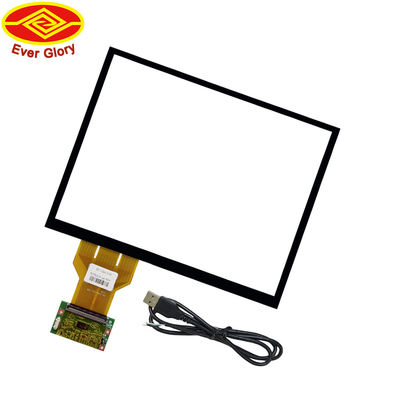

12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation 0


Size 12.1 inch
Screen Diagonal 4:3
Structure G+G
Touch controller EETI / ILITEK
Surface hardness >6H
Waterproof IP65
Outline Dimension 218.50(W)*280.00(L)±0.2mm
Active Area 186.50(W)*248.00(L)±0.2mm
Sensor Thickness 0.55±0.05mm
Cover Thickness 2.0±0.2mm
Total Thickness 2.75±0.2mm
Response Time <25 ms
Operation Conditions -40℃~+85℃ 20%~90%RH
Storage Conditions -40℃~+95℃ 20%~70%RH
Interface Type USB,RS232,I2C
Warranty 3 years

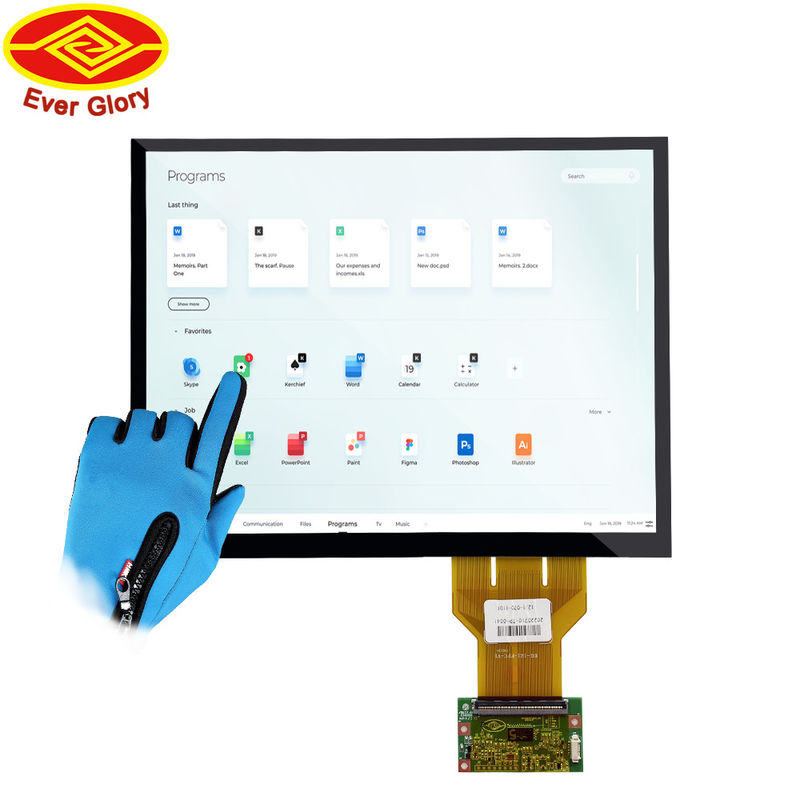

12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation 1

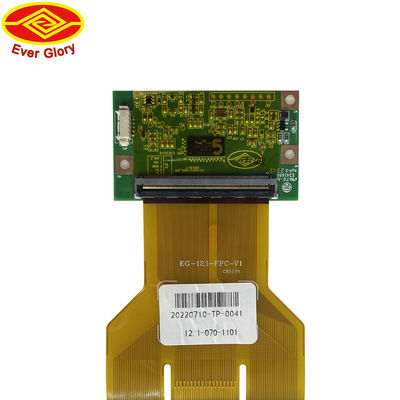

12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation 2

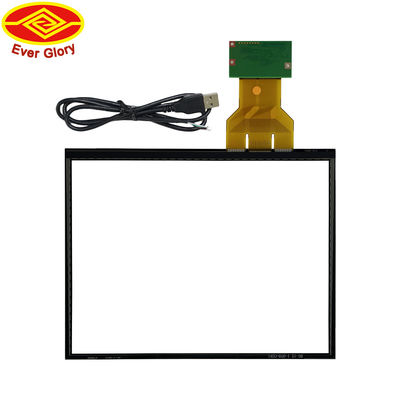

12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation 3

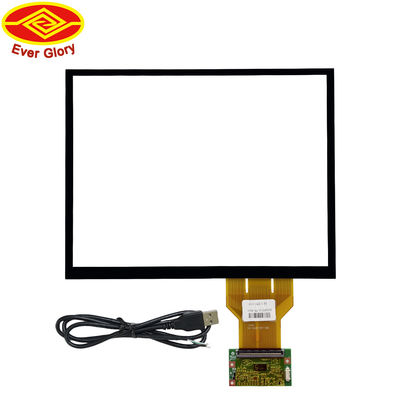

12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation 4


Lens's features

Sensor features

Shape: Standard/Customization
Color:Silkprinting,logo

Glass material:Glass, PMMA

Treatment:AR/AF/AG/Anti-UV

Thickness:1.1-12mm
Material:Glass,film

FPC:Shape design optional

IC:EETI/ILITEK

Interface:12C/USB/RS232

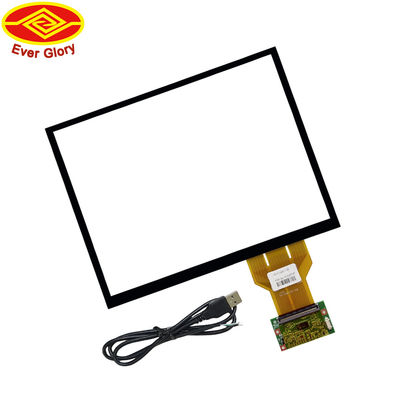

12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation 5

12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation 6
12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation 7
12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation 8
12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation 9
12.1 Inch Industrial Touch Panel LCD With USB I2C RS232 Interface For Transportation 10

  • How can we guarantee quality?

    All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.

  • Which operating systems does is support?

    Our products support Windows,Android,Mac,Linux and Chrome.

  • What are the advantages of our products?

    High precision,response quickly,good quality control,excellent after-service.

  • What is included in your products?

    Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)

  • Do you support sample testing?

    Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
  •
