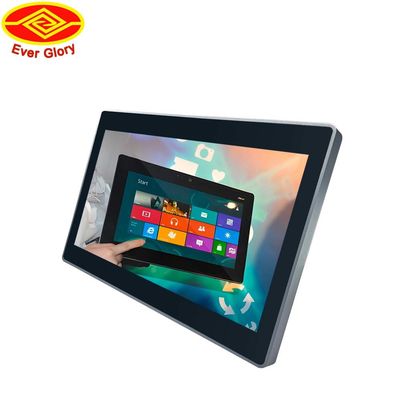

13.3 Inch Industrial Panel PC Open Metal Frame
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
| Model Number: | ZD-133MT1C-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 units |
|---|---|
| Price: | $400.00-$449/units 2-499 units |
| Packaging Details: | Standard Packaging:Wooden box with foam |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Touch Panel P/N: | ZD-133MT1C-V1 | Support Color: | 16.7M Colors ( RGB 8-bits ) |
|---|---|---|---|
| Brightness: | 800cd/m2 | Contarst Ratio: | 2000:1 |
| Video Input: | PC-RGB:Format Up To 1920*1200@75HZ PC-RGB:Color 6bit,8bit,10bit,12bit | Transmittance: | >85% |
| Lifetimes: | TYPE 50000h | Products Status: | Stock |
| Power Dissipation: | Windows 7/8/10/linux/Ubuntu | Angle Of View: | 85/85/85/85 (L/R/U/D) |
| Resolution Ratio: | 1920×1080 | Type Of Touch Screen: | Capacitive Touch Screen |
| Interface: | VGA/HDMI/DC | Humidity: | 10%-90% (Relative Humidity Without Condensation) |
| Input Mode: | Handwrtten Or Capacitive Pen | Surface Hardness: | 7H |
| Calibration: | Support | Operating Temperature: | 0°C ~ 50 °C |
| Storage Temperature: | -10 °C ~ 60 °C | ||
Product Description
Industrial Touch Panel PC 13.3 Inch Open Metal Frame Capacitive Monitor Touch Screen
13.3-inch industrial touch all-in-one machine, capacitive touch operation is smooth, support VGA/HDMI video input. Body shockproof explosion-proof, anti-interference anti-static, wide voltage 90V-240V power supply, suitable for all kinds of industrial environments.
13.3-inch Industrial Grade Touch Panel PC
High-performance touch display solution
The 13.3-inch touch panel display adopts high-definition 1920x1080 resolution with capacitive touch technology to provide accurate and smooth touch experience. The body design is durable, shockproof and explosion-proof, suitable for a variety of industrial environments.
Main Features.
- High-definition 1920x1080 resolution, color saturation up to 16.7M
- 85-degree wide viewing angle, to ensure that the picture is clear and visible
- Capacitive touch, support stylus and multi-touch operations
- 500 DPI high-precision touch control, responsive operation
- 7H hardness surface, scratch-resistant and durable
- Operating temperature 0°C~50°C, suitable for various industrial environments.
- Shockproof and explosion-proof design for durability
- Support VGA/HDMI video input
- Wide voltage 90V~240V input, intelligent power management
- Low power consumption design, standby power consumption ≤ 1W
Whether it is industrial automation, medical equipment or commercial display, this 13.3-inch touch monitor can provide excellent interactive experience and reliable performance guarantee. Welcome to customize and purchase!
Product Interface
| Size | 13.3 inch |
| Interface | HDMI*1/VGA*1/DC*1/PACUDIO*1 |
| Brightness | 800cd/m2 |
| Surface hardness | >7H |
| Color | 16.7M Colors ( RGB 8-bits ) |
| Display area | 293.76(H) ×165.24(V)mm |
| Pixels H×V | 1920×1080 |
| Pixel Pitch | 0.153×0.153mm |
| Power Input | AC 90-240V |
| Power output | DC12V / 24V |
| Contrast Ratio | 2000:1 |
| Package size | 385*280*110mm/Customization |
| Anti-Vibration | 5-19HZ/1.0mm / 19-200HZ/1.0g |
Standard Packing with carton or wooden box
- Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
- Flexible packing options with carton or wooden box.
- Shipping methods:DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
