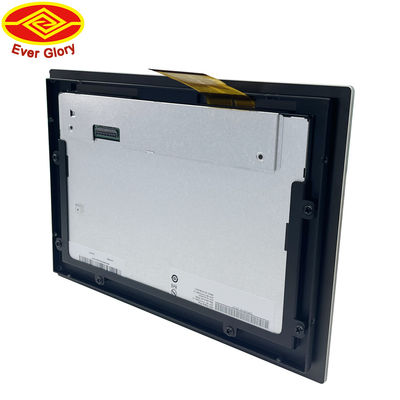

15 Inch Outdoor Touch Panel Module 400cd/M2 Brightness 25ms Response Time
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
| Model Number: | EG-15-A-0403V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $136.00/pieces 2-499 pieces |
| Packaging Details: | Inner packaging: packing with bubble bags and filling with foam plastic materials; Outer packaging: packing with serial size of carton or wooden box. |
| Supply Ability: | 10000 Piece/Pieces per Week |
|
Detail Information |
|||
| Screen Diagonal: | 15/4:3 Inch | Impact Resistance: | ≥IK07 |
|---|---|---|---|
| Contrast Ratio: | 2500 Typ. | Operating System: | XP Win7 8 Android Linux |
| Brightness: | 400cd/m2 | Interface: | I2C/SPI/UART/GPIO |
| Life Span: | 50,000 Hours | Material: | Glass |
| Operating Temperature: | -20℃~70℃ | Response Time: | 25ms |
| Storage Temperature: | -30℃~80℃ | ||
| High Light: | 15 Inch Touch Panel Module,Touch Panel Module 400cd/M2,25ms Touch Panel Module |
||
Product Description
Touch Screen Display Moudule 15 Inch Outdoor For Delivery Parcel Locker
| Touch Panel P/N | EG-15-A-0403V1 |
| Display P/N | G150XNE-L01 |
| Screen Diagonal | 15/4:3 inch |
| Cover Outline Dimension | 336.3*260.6 mm |
| Touch Panel View Area | 304.3*228.6 mm |
| Touch Panel Active Area | 305.3*229.6 mm |
| Display Outline Dimension | 326.5*253.5 mm |
| Display Active Area | 304.1*228.1 mm |
| Total Thickness | 12.35 mm |
| View angle | 89/89/89/89, Full view angle |
| Cover surface hardness | ≥6 H |
| Impact resistance | ≥IK07 |
| Luminance, white | 400cd/m2 |
| Operation Conditions | 20%~90% RH |
| Storage Conditions | 20%~70% RH |
| Touch Response Time | ≤25 ms |
| Pixels H×V | 1024 x R.G.B x 768 |
| Pixel Pitch | 0.297(H) x 0.297(W) mm |
| Shape:Standard/Customization | Material:Glass,Film | Optical Bonding |
| Color:Silkprinting,logo | FPC:Shape Design Optional | Air Bonding |
| Glass material:Glass,PMMA | IC:EETI/ILITEK | LCD:LED,OLED,TFT,IPS |
| Treatment:AR/AF/AG/Anti-UV | Interface:12C/USB/RS232 | |
| Thickness:1.1-12mm |
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
